Automatic Sliding Gate Operators
Key Components: The gate opener features a durable aluminum alloy casing, a high-quality single-phase motor, a modern friction clutch, a worm gear and reducer, toothed clutches, and output gears. The motor's spindle, powered by the friction clutch, ensures smooth gate movement along the specialized rack, enabling easy opening and closing.
• Versatile Power Sources: Our innovative gate opener adapts seamlessly to multiple power sources, including AC110~240V, a built-in battery providing up to 3 hours of backup power, and the option to connect to a solar power panel for sustainable energy.
• Precision Transmission System: The system incorporates a precision-engineered transmission
system that consists of a worm gear,a driven gear,and rack engagement,ensuring the gate
moves smoothly and reliably.
| Model No. | ME-GO-1400 |
| Motor Power / Voltage | 280W / DC 24V |
| Max. Lifting Weight | 1400 LB |
| Horse Power | 0.38 HP |
| Output Torque | 16 N.m |
| Working Voltage | AC 110~120V, 50/60Hz |
| Rated Current | 5A |
| Max. Gate Length | 46ft (14m) |
| Motor Speed | 2400 rpm |
| Gate Moving Speed | 52.5 ft/min (16m/min) |
| Remote Control Range | Max.165ft (50m) |
| Recording of Remotes | 40pcs (2 are included) |
| Working Temperature | -13°F ~ 131°F |

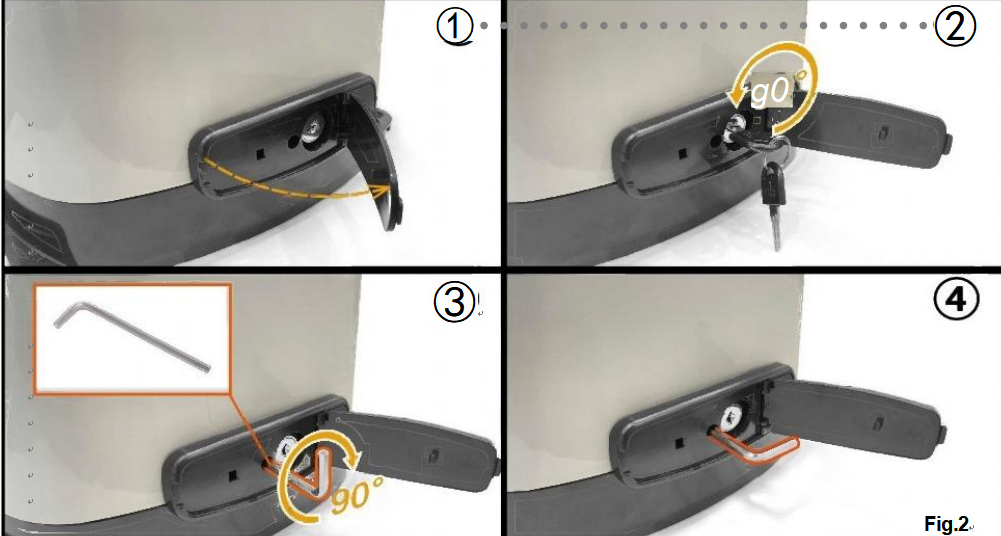

MANUAL OPERATION
In the event of a power failure or when the battery is depleted,you can use the manual release key and provided hex wrench to manually open or close the gate by following these steps:
· Pry open the cover of the clutch on the left side.Insert the key and turn it counterclockwise.
· Then,insert the hex wrench and turn it clockwise approximately 90 degrees to unlock.
· Once the setup is complete,turn the hex wrench counterclockwise 90 degrees and turn the key to a horizontal position clockwise to close the clutch cover,securing the gate.
